FIS Architecture

Target Ecosystem Architecture

ViewPoint remains the source of truth for ecosystem data. The Ascentium Digital Assistant Chrome Extension guides users through process steps and triggers the Azure-hosted API calls that integrate into the FIS module landscape.

High-Level View

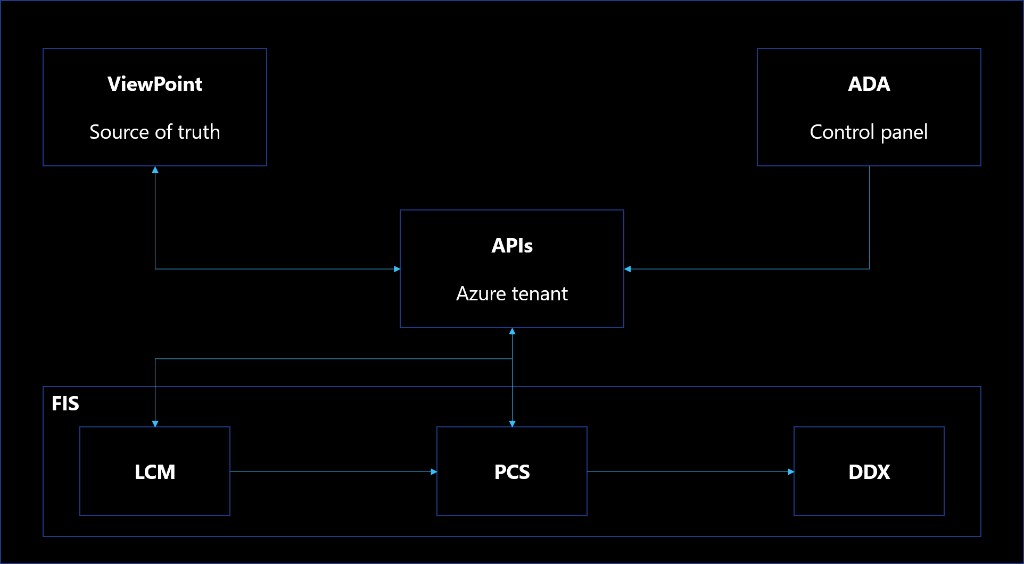

Architecture diagram showing ViewPoint as the source of truth, ADA as the control panel, APIs in an Azure tenant, and FIS modules LCM, PCS, and DDX with directional integrations.

ViewPoint

Acts as the source of truth for data across the ecosystem.

ADA

Chrome Extension containing process step guides and triggering API calls.

APIs

Hosted inside a Microsoft Azure tenant as the integration layer.

FIS Modules

Contains PCS, LCM, and DDX with one-way integrations from LCM to PCS and PCS to DDX.

Directional constraint: PCS integrates to DDX only, and LCM integrates to PCS only. The reverse paths are intentionally not shown.
